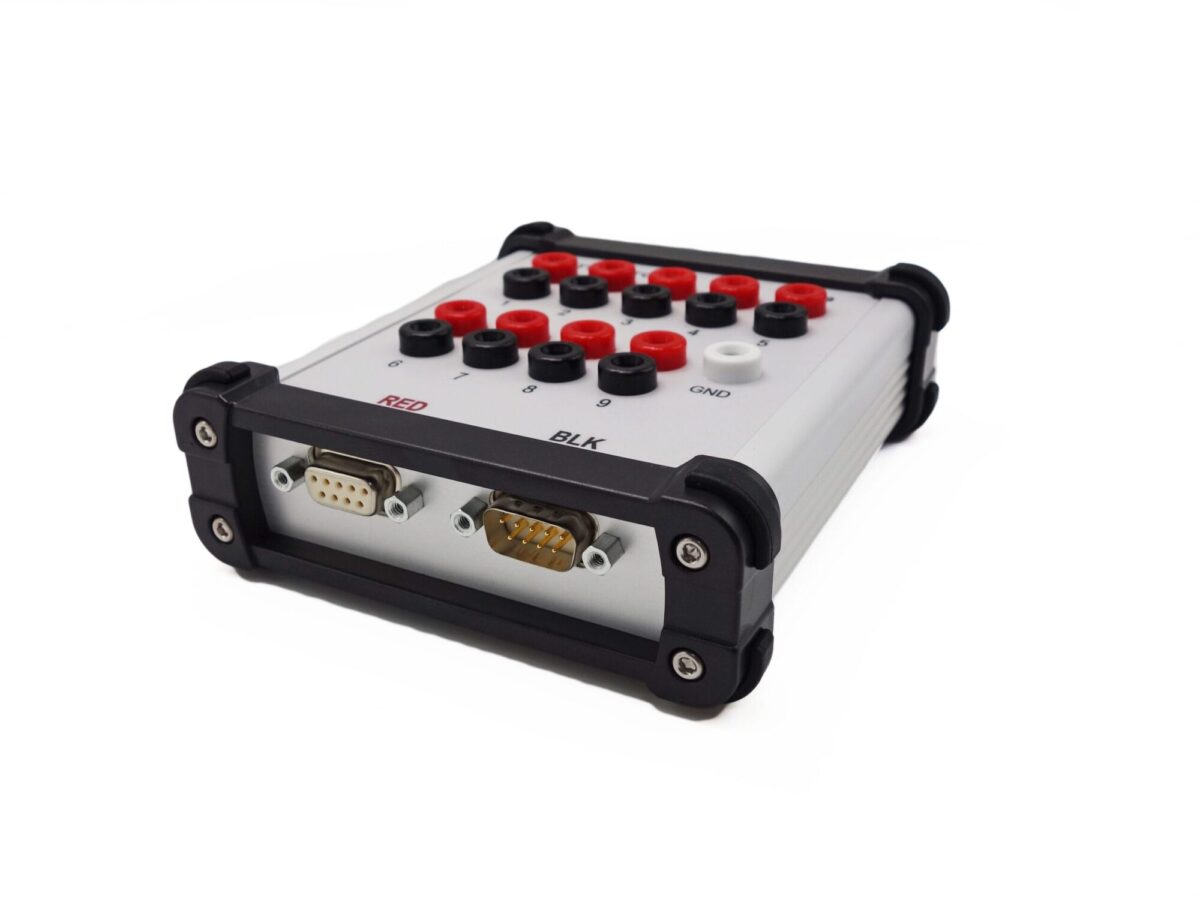

- Extruded aluminum enclosure with high-impact resistant design
- Low contact resistance between test points and connectors
- Silicone rubber corner guards and thermoplastic edge frames

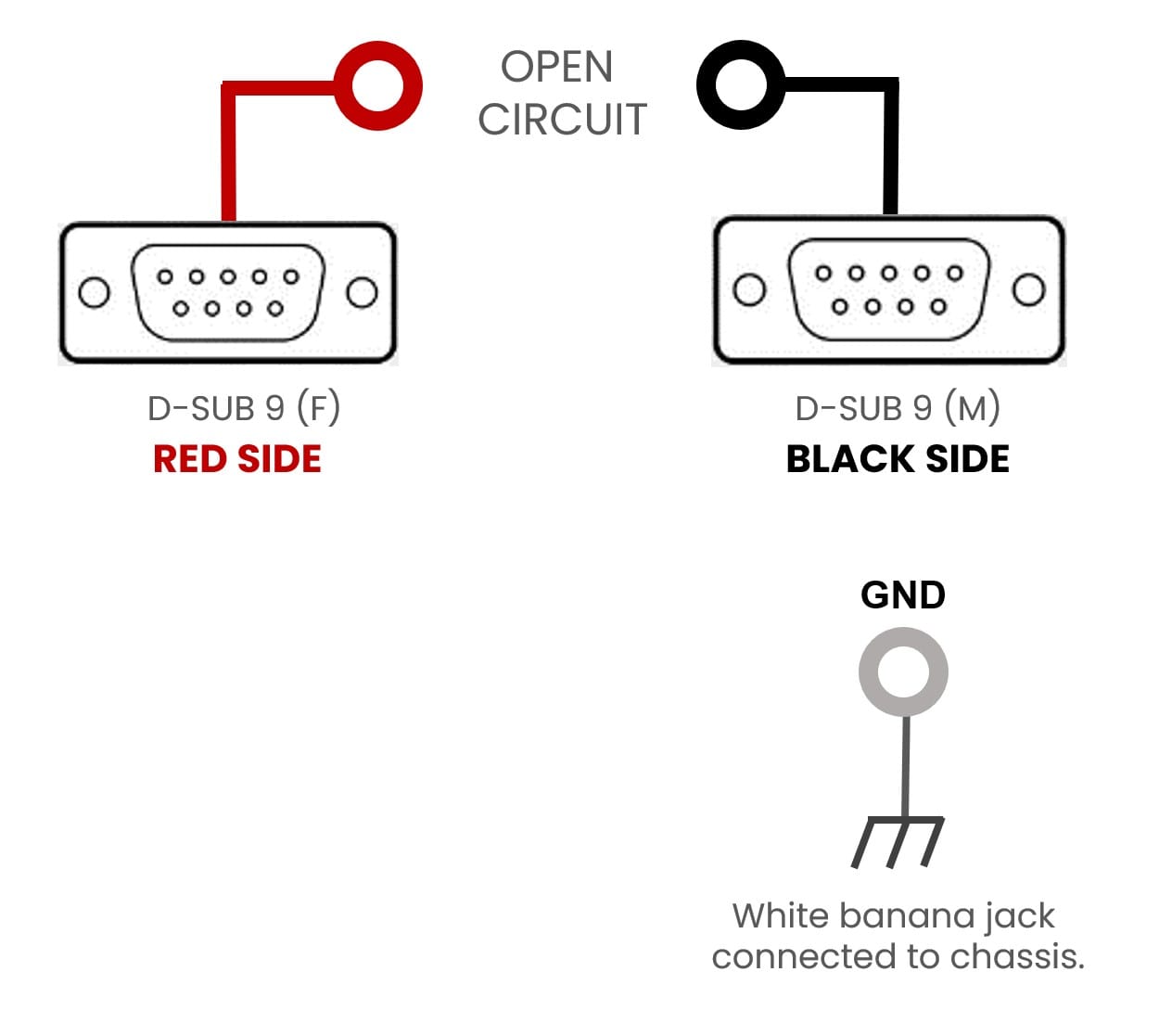

- Dedicated chassis ground test point (white banana jack)

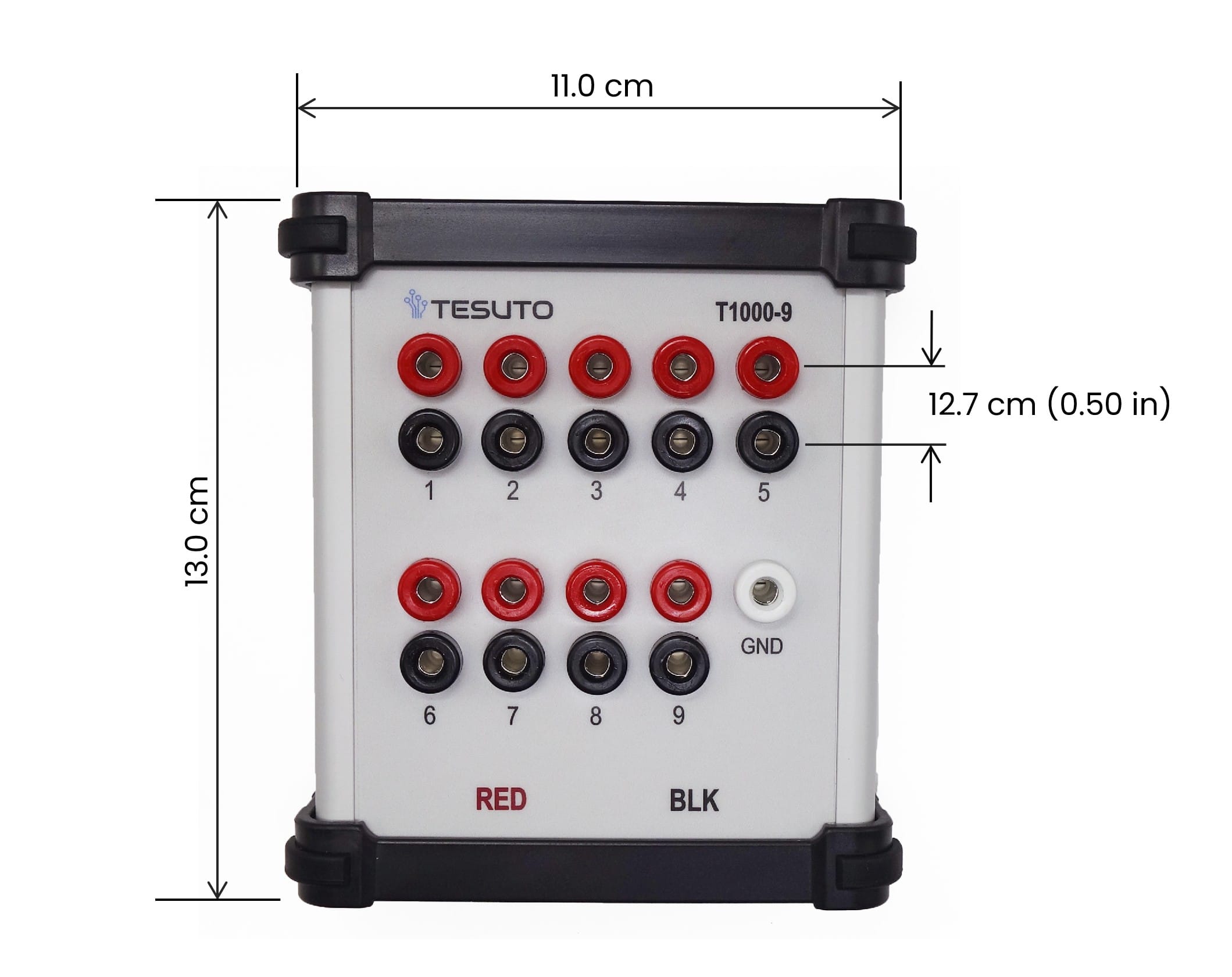

- 18 insulated red and black banana jack test points
- Tin plated formed brass banana jack contacts per QQ-B-626D
- Compatible with standard 0.17 in. / 4 mm banana test plugs

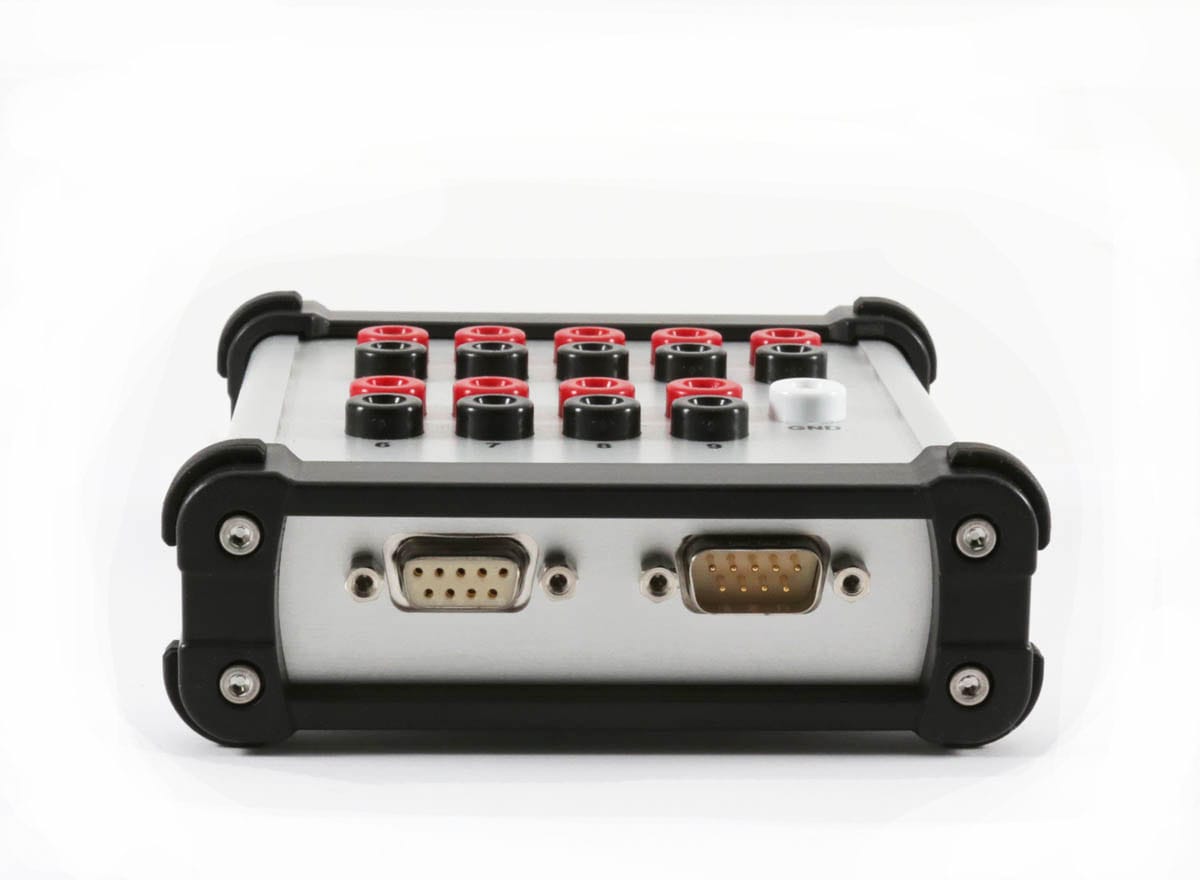

- High reliability Male/Female 9 pin D-Sub connectors
- Nickel plated steel shell, 174-E Series NorComp connectors
- Acceptance Test IR @ 500VDC, 200M Ohm min.
T1000-9

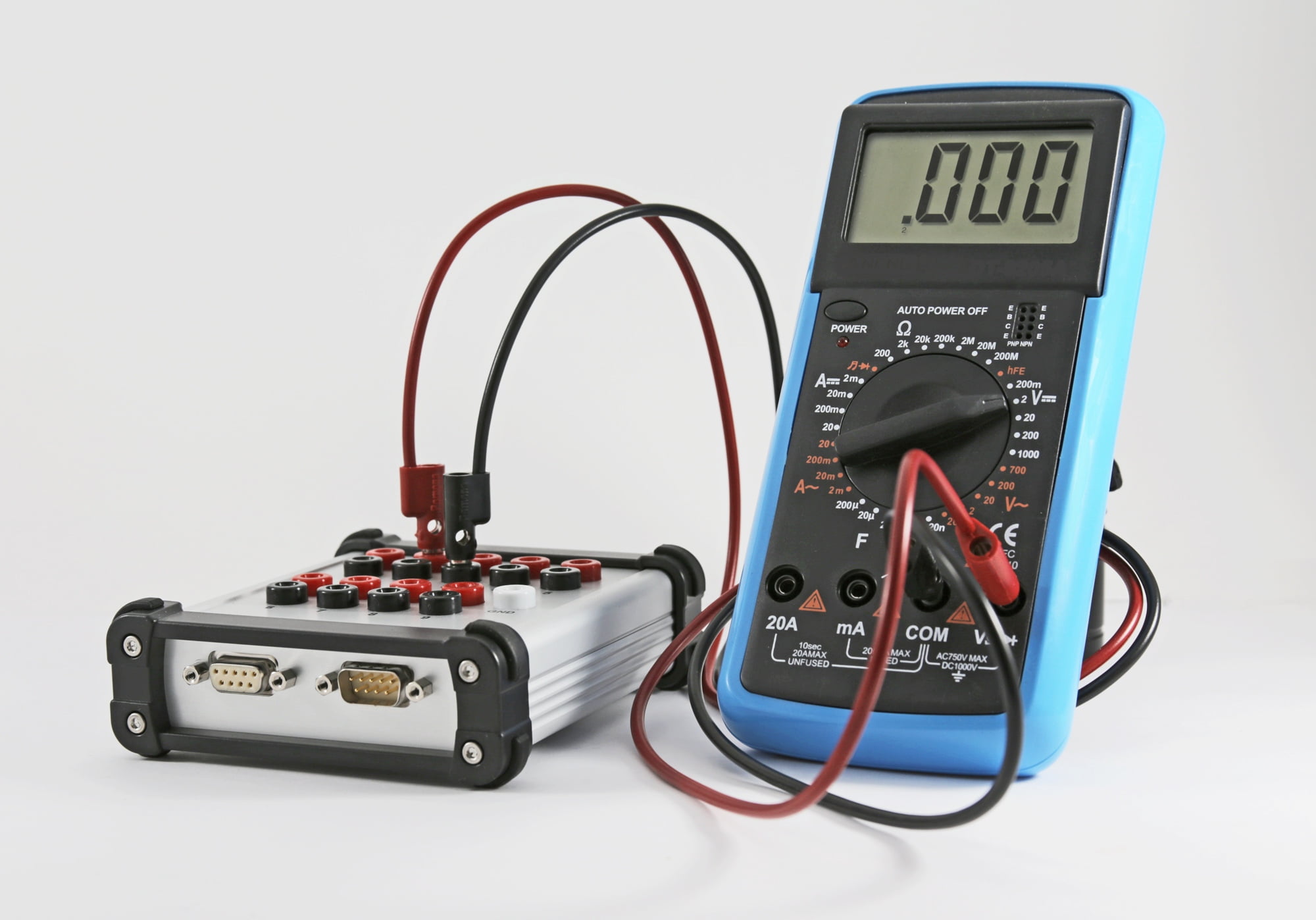

The T1000-9 is a ruggedized signal breakout box designed to simplify troubleshooting, testing, and signal capture. Connect your system or cable using standard 9 pin D-Sub connectors and easily create a test system and make measurements. Great for testing cable assemblies or in-line signal testing. Each test point is designed to provide low contact resistance via an internal PCB (printed circuit board) to each connector. High voltage Insulation Resistance testing is performed on all breakout boxes to ensure electrical integrity according to the specifications.
In-stock orders usually ship in 3-5 business days.
Backorders usually ship in 4-5 weeks.
$469.00
Availability: 5 in stock (can be backordered)
Breakout Box T1000-15
| Resistance: | 0.120 Ω @ 20°C max. |
|---|---|
| Current Rating: | 5.0 Amps @ 20°C |
| Voltage Rating: | 500VDC or 70VDC for hand-held use. |
| Connectors: | Standard Density 9-pin D-Sub, gold plated contacts. |
| Weight: | 0.4 kg |
| Enclosure: | Extruded Aluminum with impact resistant polycarbonate edge guards. |
