- Extruded aluminum enclosure with high-impact resistant design
- Low contact resistance between test points and connectors
- Silicone rubber corner guards and thermoplastic edge frames
- Dedicated box chassis ground test point (white banana jack)
- 50 insulated red and black banana jack test points
- Tin plated formed brass banana jack contacts per QQ-B-626D
- Compatible with standard 4 mm (0.17in) banana test plugs

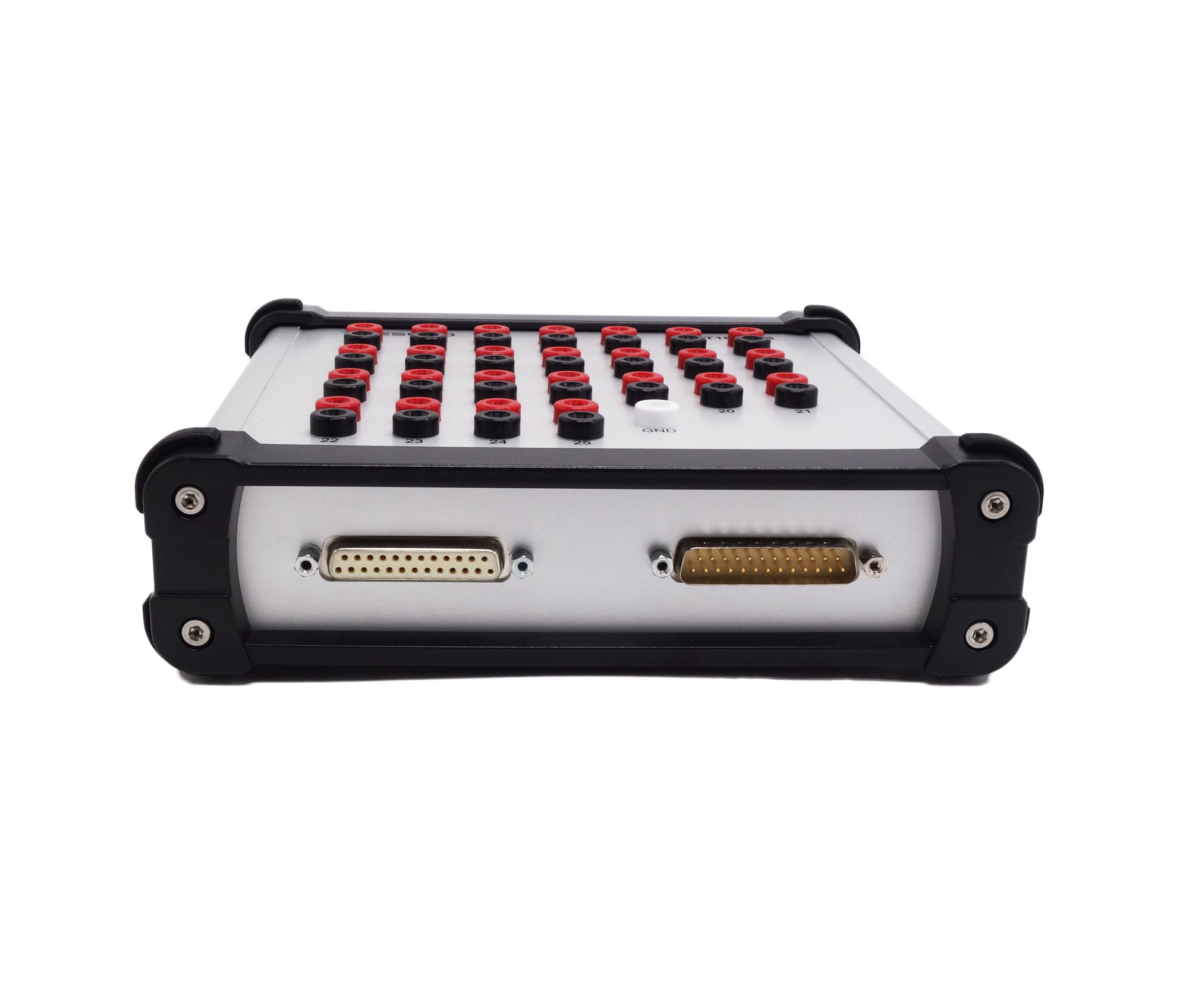

- High reliability Male/Female 25 pin D-Sub connectors
- Nickel plated steel shell, 174-E Series NorComp connectors
- Machined gold-plated contacts on D-Subs
- Acceptance Test IR @ 500VDC, 200M Ohm min.
T1000-25
The T1000-25 is a rugged signal breakout box engineered for efficient troubleshooting, testing, and signal capture. Featuring standard 25-pin D-Sub connectors, it integrates seamlessly with your system or cable for fast setup and accurate measurement. Ideal for cable assembly testing or in-line diagnostics. Each test point is internally connected through a precision PCB to ensure low contact resistance and dependable signal access. High voltage Insulation Resistance testing is performed on all breakout boxes to ensure electrical integrity according to the specifications.
In-stock orders usually ship in 3-5 business days.
Backorders usually ship in 4-5 weeks.
$699.00
Available on backorder
Breakout Box T1000-15
| Weight | 1.07 kg |
|---|---|

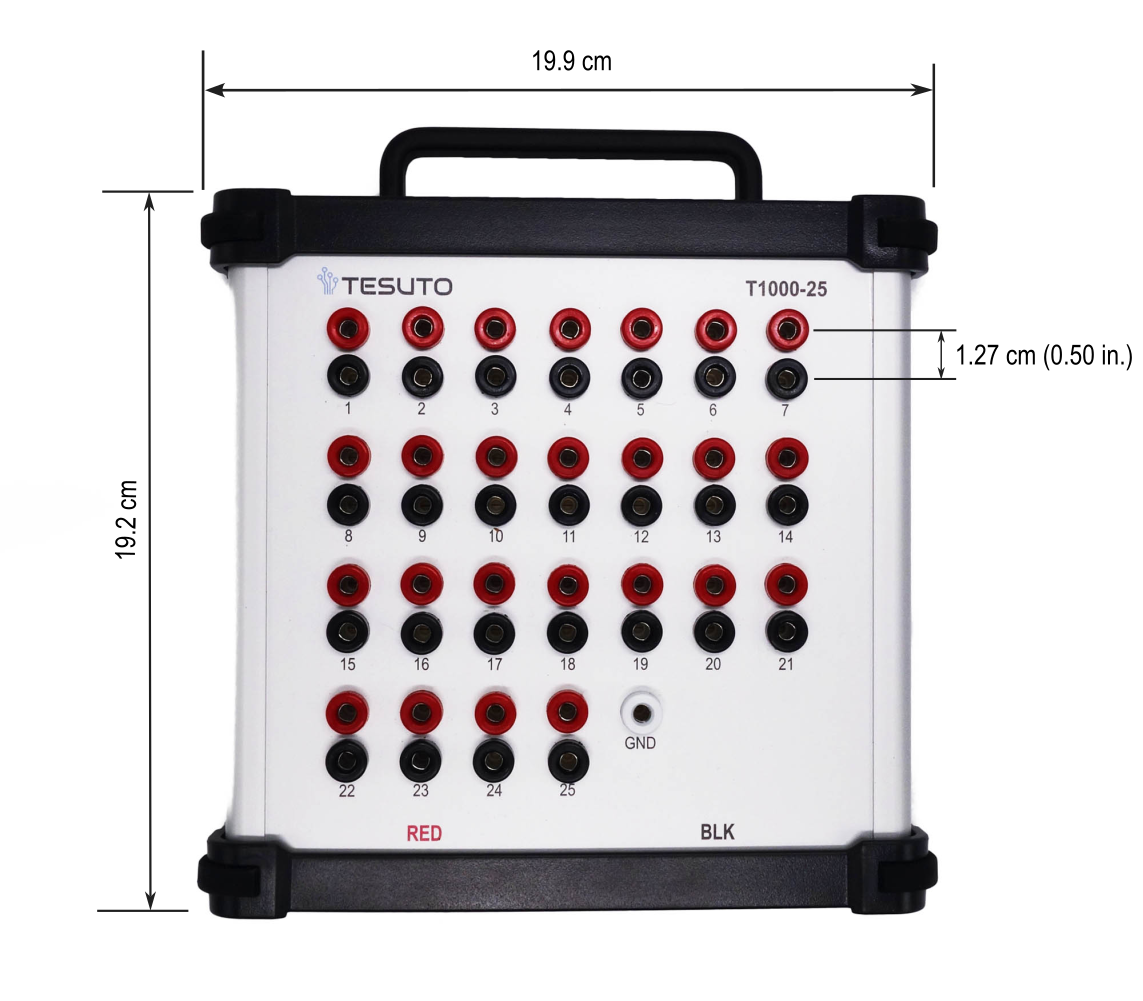

| Dimensions | 192 × 199 × 56 cm |
| Resistance | 0.120 Ω @ 20°C, max. |
| Current Rating: | 5.0 Amps @ 20°C |
| Voltage Rating: | 500VDC or 70VDC for hand-held use. |
| Connectors: | Standard Density 25-pin D-Sub, gold plated contacts. |
| Weight: | 1.07 kg |
| Enclosure: | Extruded Aluminum with impact resistant polycarbonate edge guards. |
