| Resistance | 0.05 Ohms max. |
|---|---|
| Max Current | 5 Amps |
| Material | Nickel plated Brass body and contact per QQ-N-290, Class 2, 200/300 microinches |
| Voltage | 500 VDC Max. Not intended for hand-held use at voltages above 70VDC. |

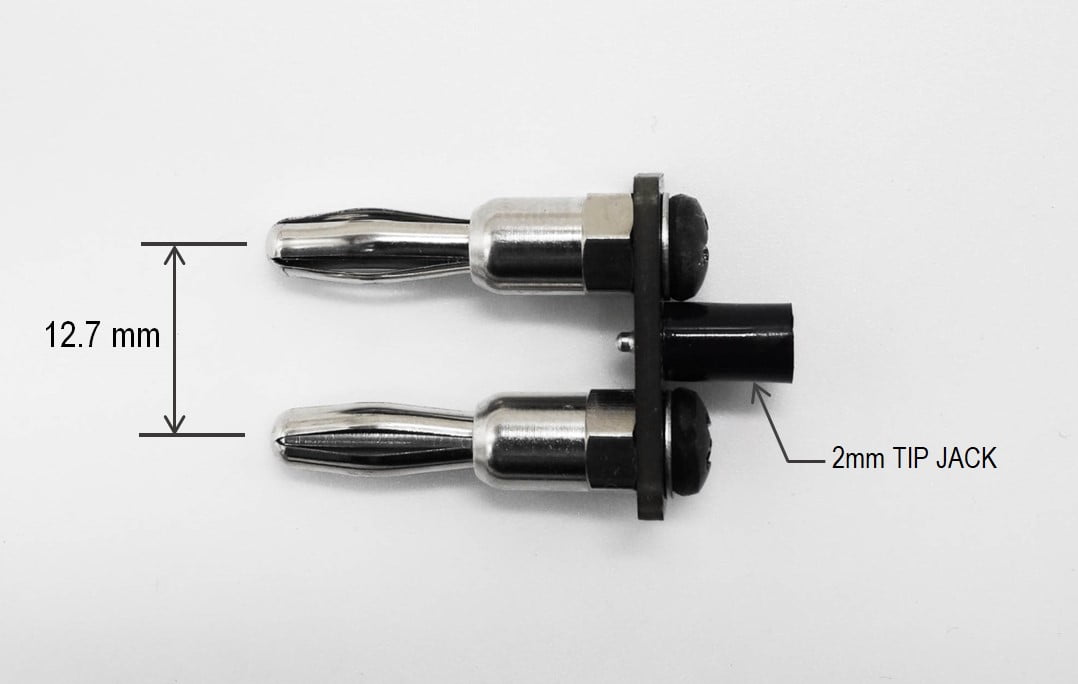

| Contact Spacing | 12.7 mm (0.5 in.) |
| Tip Jack Diameter | 2mm |
T1000-SP

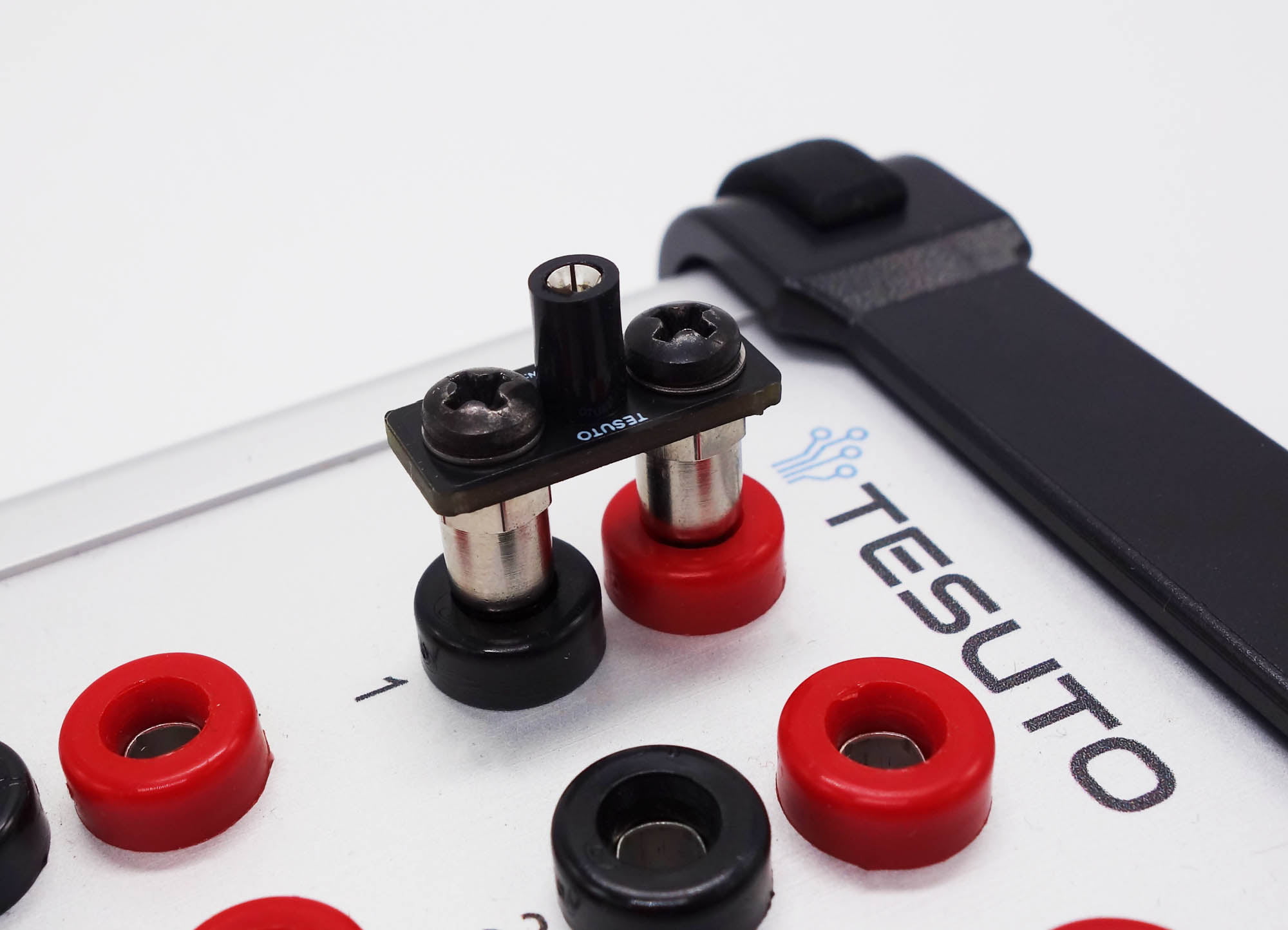

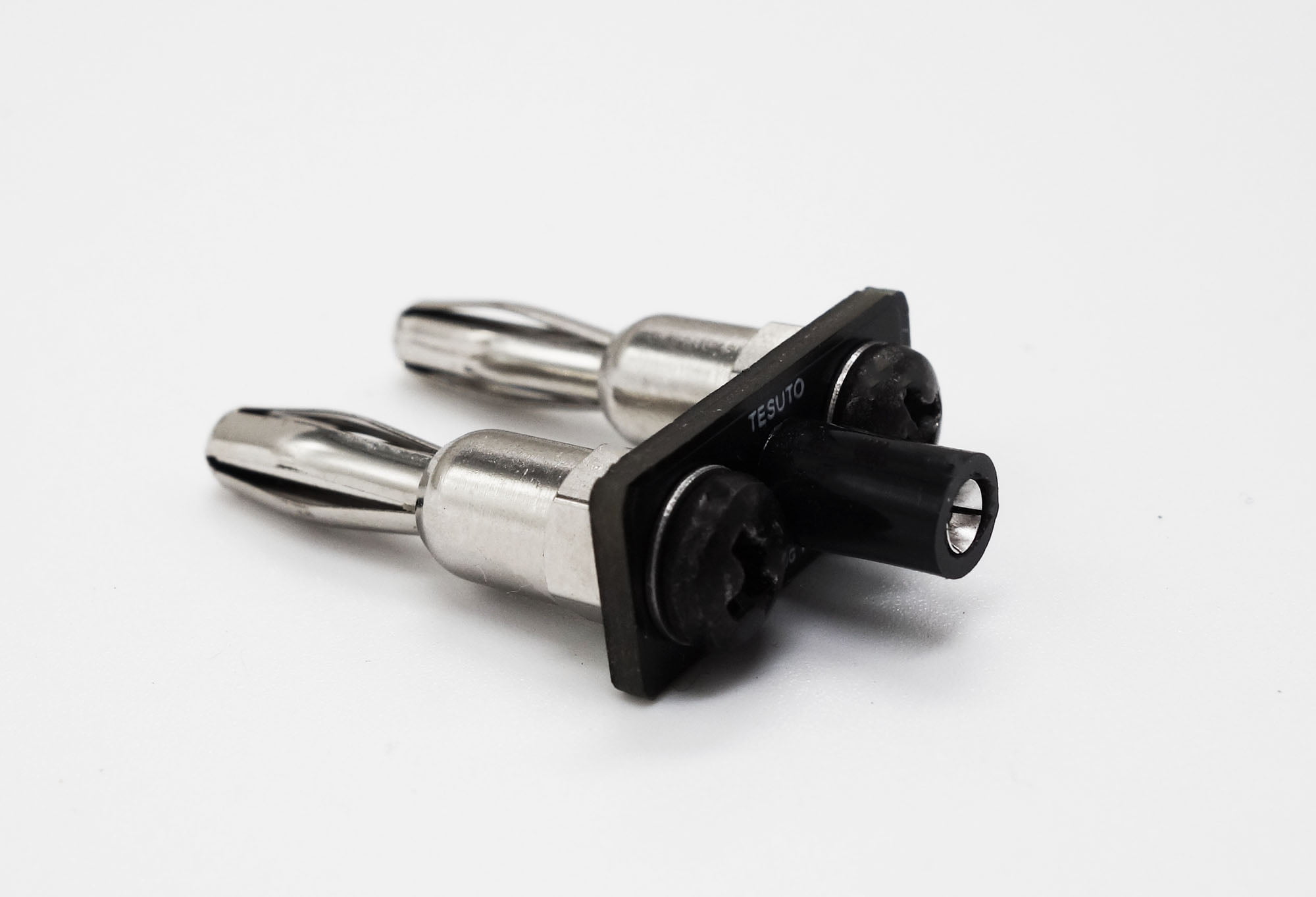

The T1000-SP shorting plug is an essential accessory for the T1000 series breakout box. Shorting plug connects the RED side to BLACK side when breakout box circuit continuity is desired. Shorting plug uses standard banana plugs with 0.5 in (12.7 mm) of contact spacing. The shorting plug features ultra-low resistance and includes a built-in 2mm test point tip jack compatible with most DMM multi-meter probes for easy test and measurement.
$18.75
Availability: 23 in stock (can be backordered)
