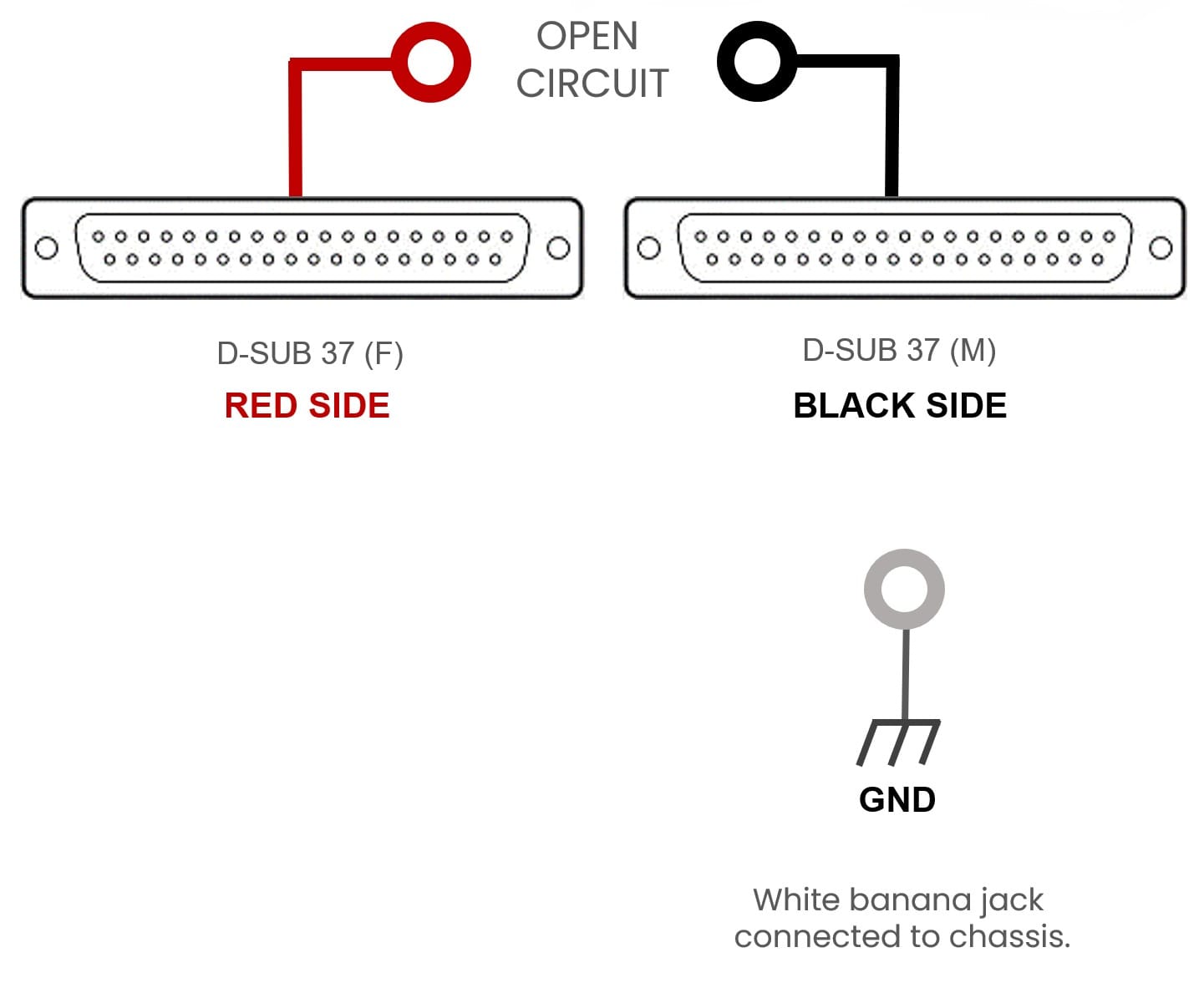

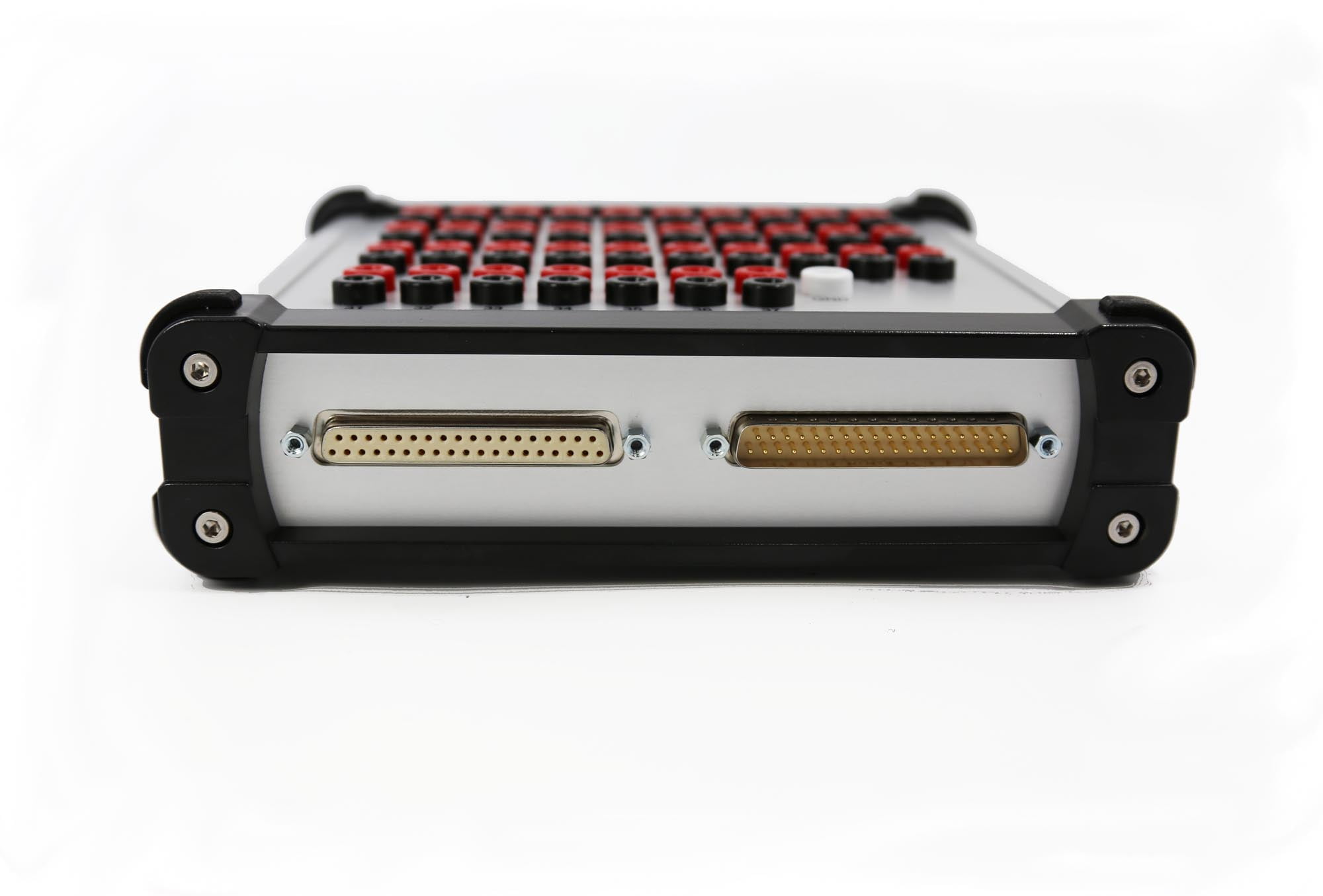

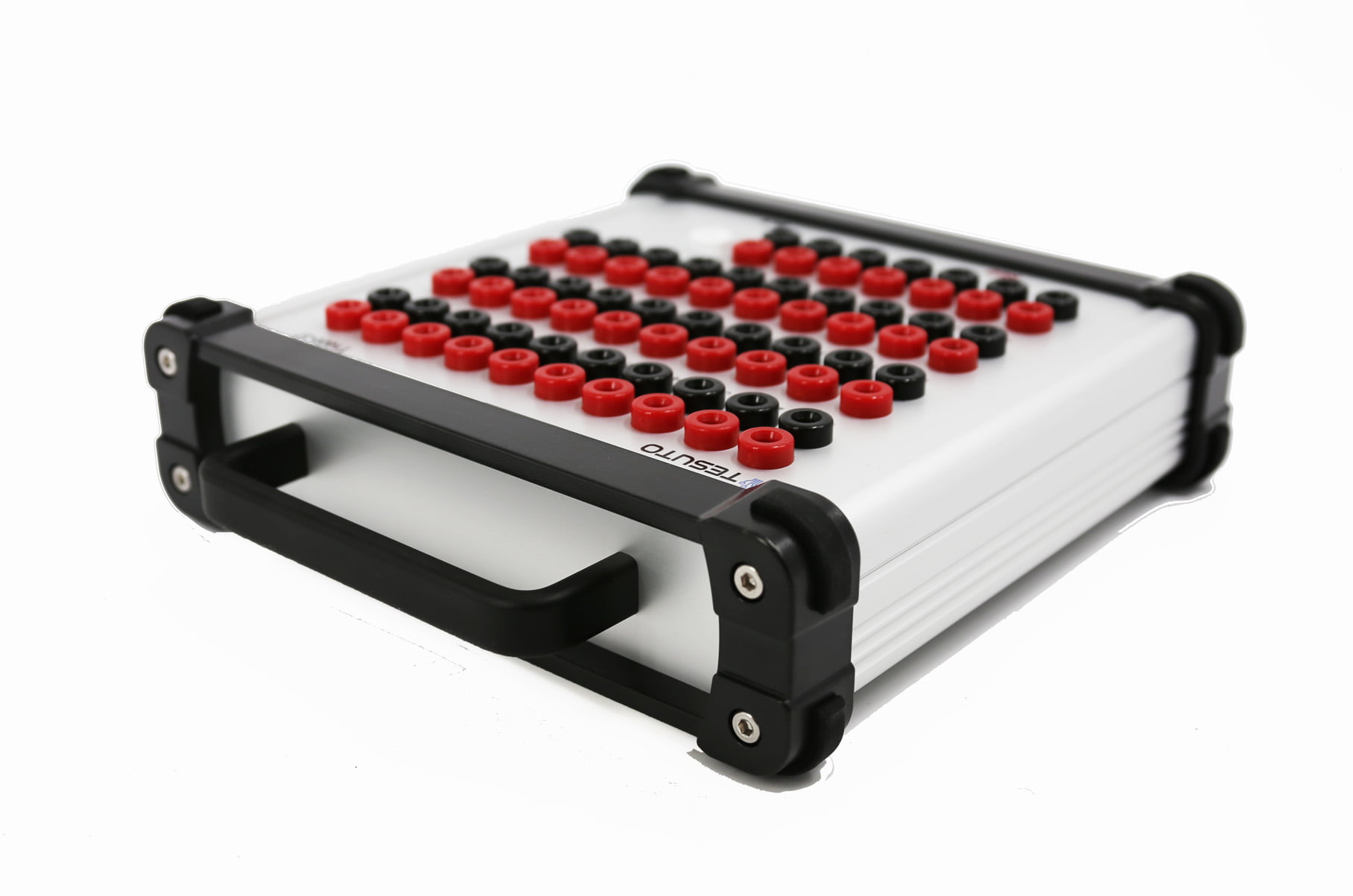

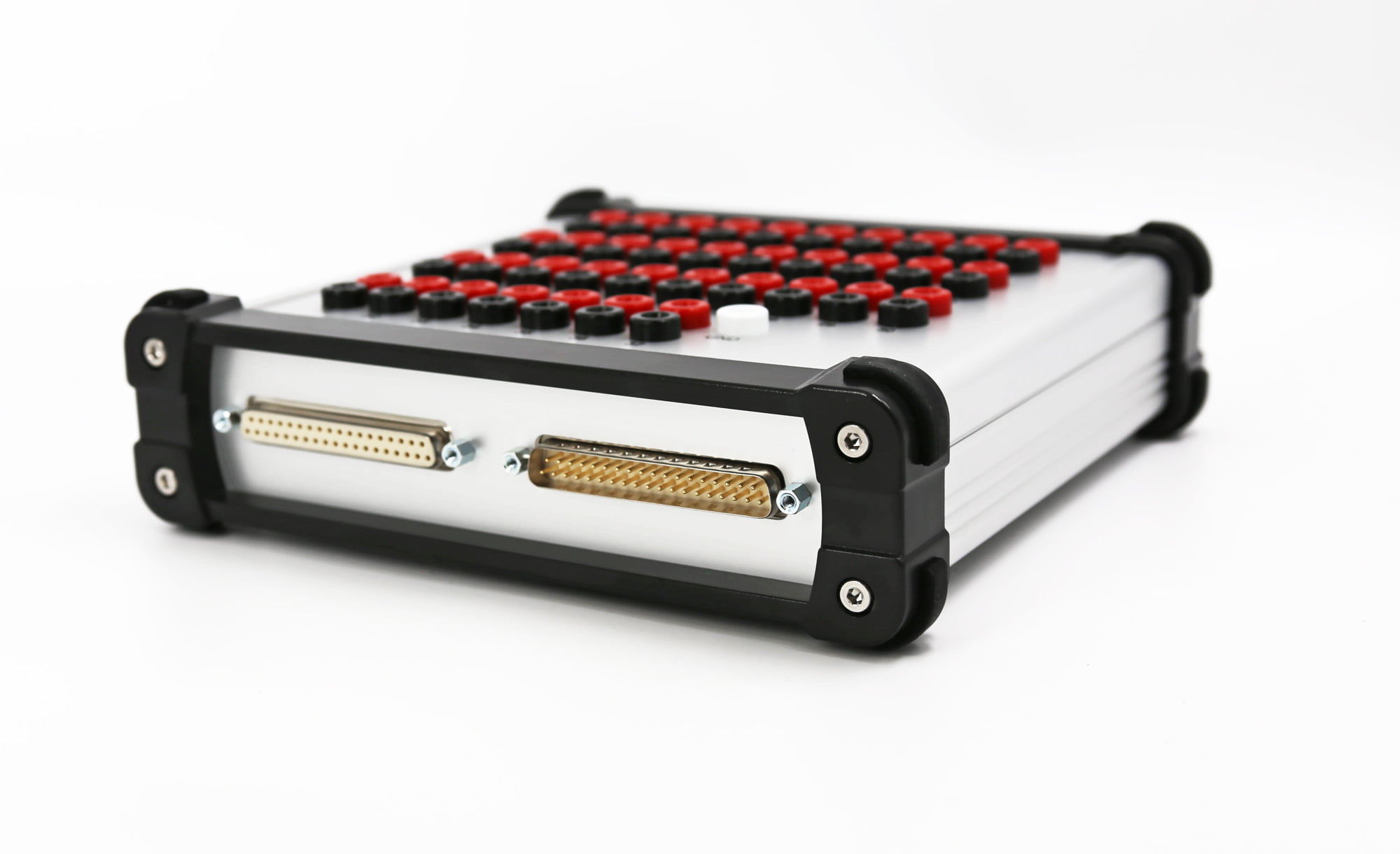

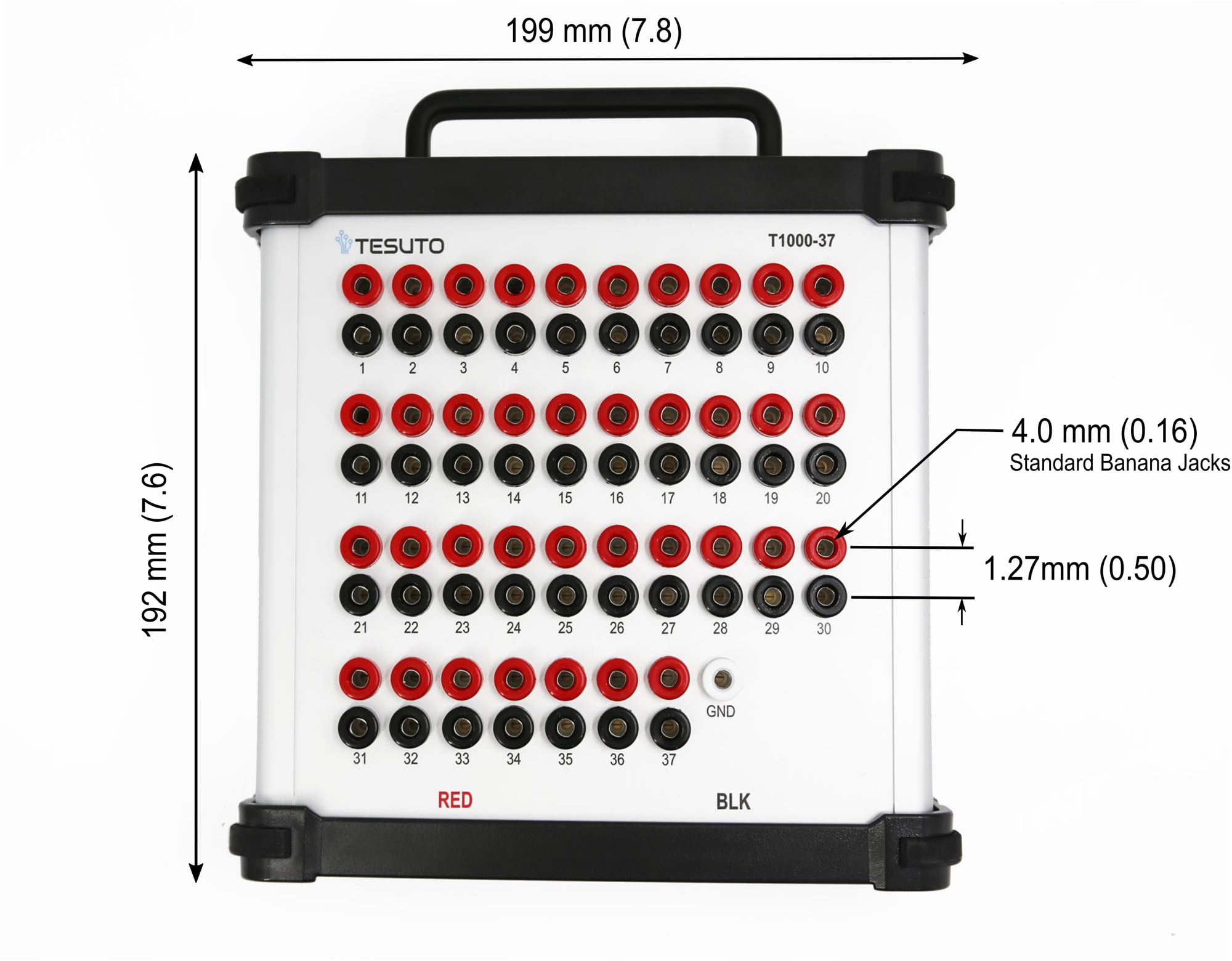

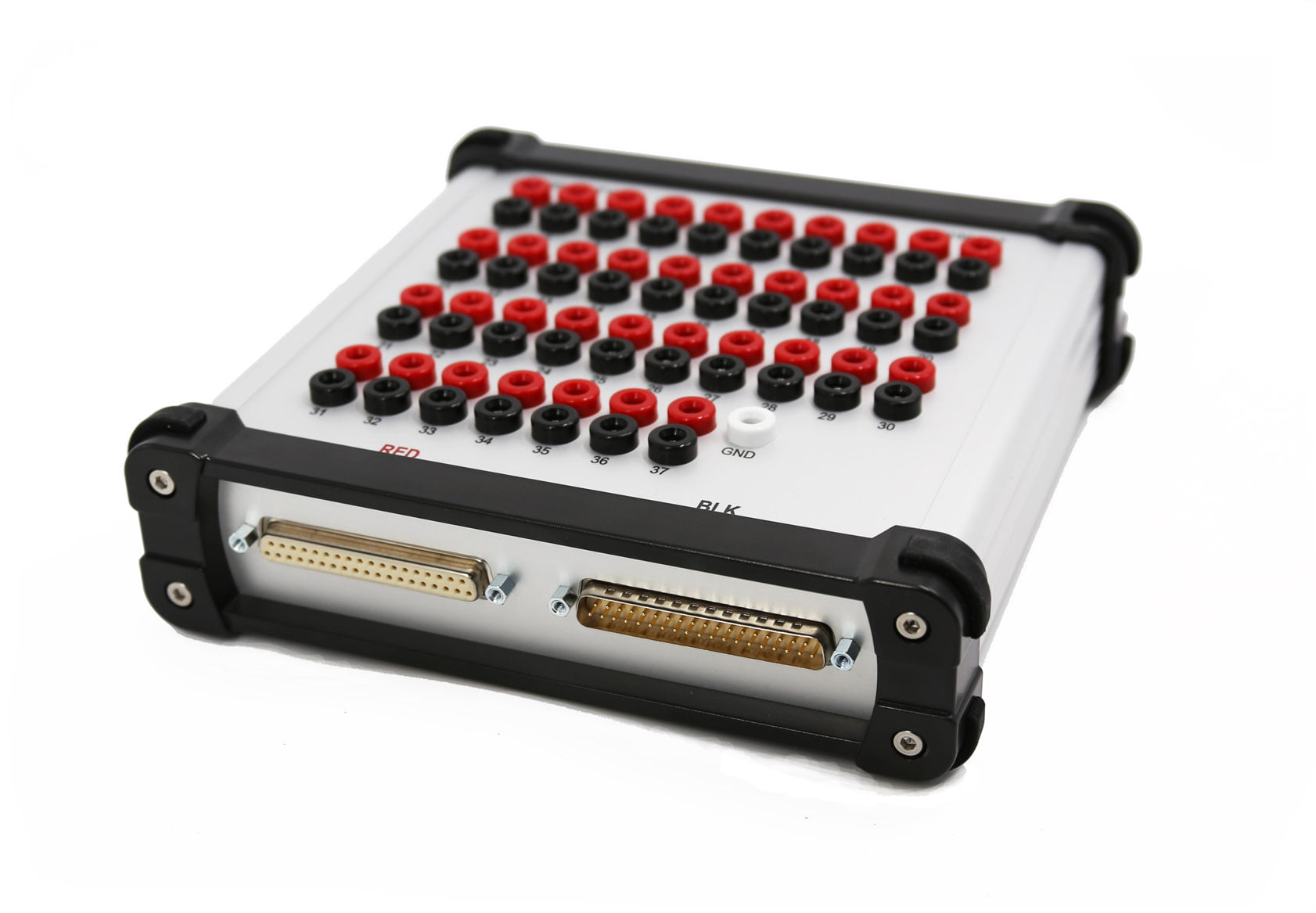

This is the latest release of the 37 pin T1000-37 breakout box (BOB). The new more compact design equipped with a convenient carrying handle maintains the same high quality reliable  performance. This BOB model uses standard DB37 male and female connectors providing you signal breakout access through standard 4mm banana jacks on the top panel. The D-sub input and output connectors provide a total of 74 test points, accompanied by a ground jack connected to box chassis. Make sure to check out our T1000-SP shorting plug which provides an easy way to connect the input (RED) to the output side (BLK). Shorting plugs are useful for fault insertion testing or other functional test with in-line breakout box testing. This versatile tool is perfect for a wide range of applications, including continuity measurements, isolation testing, troubleshooting, signal capture, system verification and acceptance testing.

Usually ships in 3-5 business days.
