- Extruded aluminum enclosure with high-impact resistant design
- Low contact resistance between test points and connectors
- Silicone rubber corner guards and thermoplastic edge frames
- Dedicated chassis ground test point (white banana jack)
- 30 insulated red and black banana jack test points
- Tin plated formed brass banana jack contacts per QQ-B-626D
- Compatible with standard 0.17 in. / 4 mm banana test plugs
- High reliability Male/Female 37 pin D-Sub connectors
- Nickel plated steel shell, 174-E Series NorComp connectors
T1000-15

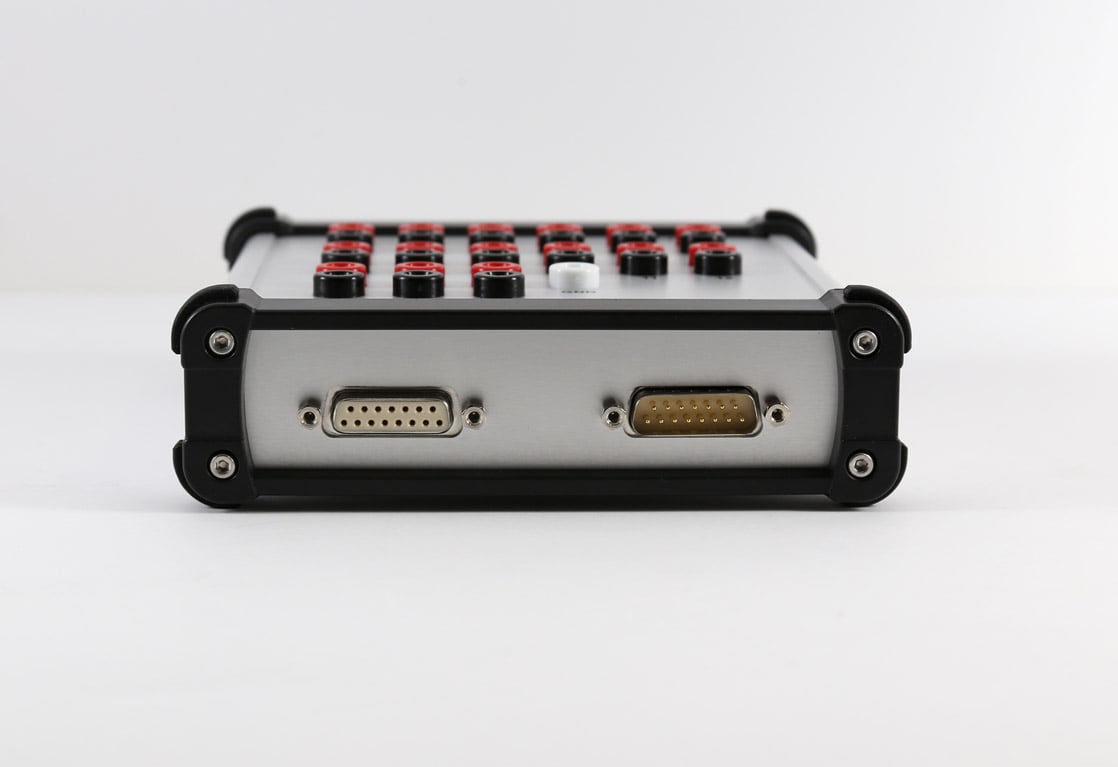

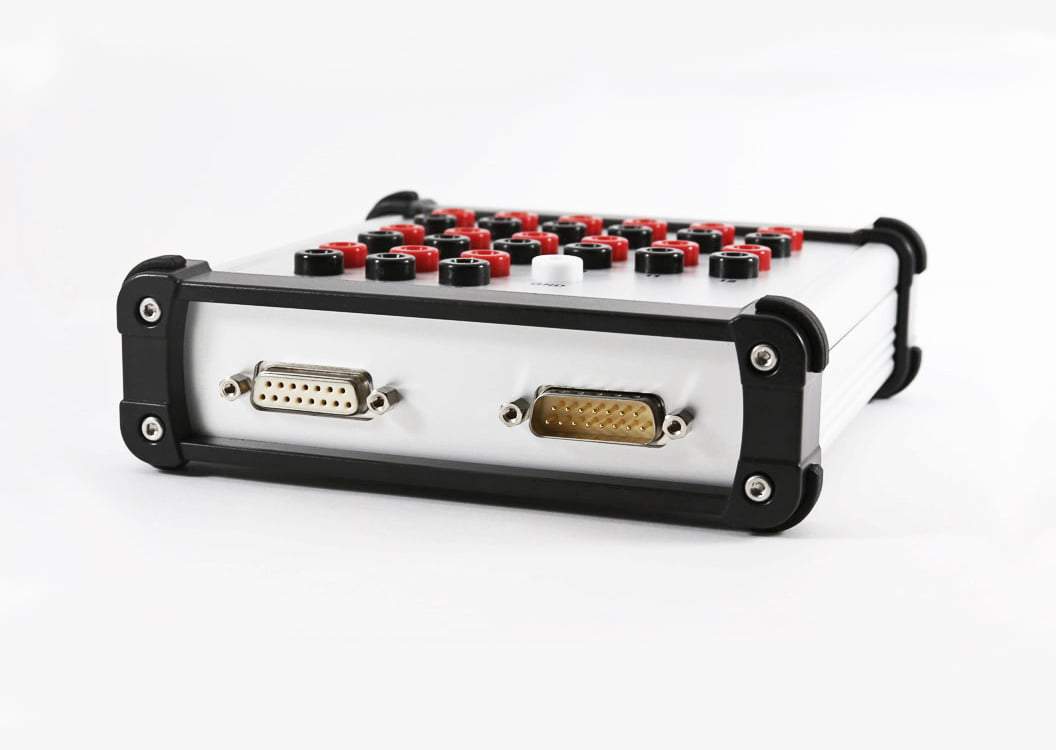

T1000-15 breakout box with dual 15 pin D-Sub connectors for signal capture or monitoring. Dual connectors provide a total of 30 test points plus a ground jack. All test points use standard size 4mm banana jacks. Test points may be connected using shorting banana cable to allow signal continuity. Ideal for continuity measurements, isolation testing, and signal capture.
$499.00
Availability: 1 in stock
Breakout Box T1000-15
| Resistance: | 0.120 Ω @ 20°C, max. |
|---|---|
| Current Rating: | 5.0 Amps @ 20°C |
| Voltage Rating: | 33 Vrms / 70 Vdc for hand-held use, or 500Vrms for 1 minute otherwise. |
| Connectors: | Standard Density 15-pin D-Sub, gold plated contacts. |
| Weight: | 0.6 kg |
| Enclosure: | Extruded Aluminum with impact resistant polycarbonate edge guards. |
