- Extruded aluminum enclosure with high-impact resistant design
- Low contact resistance between test points and connectors
- Silicone rubber corner guards and thermoplastic edge frames
- Dedicated chassis ground test point (white banana jack)
- 18 insulated red and black banana jack test points
- Tin plated formed brass banana jack contacts per QQ-B-626D
- Compatible with standard 0.17 in. / 4 mm banana test plugs
- High reliability Male/Female 9 pin D-Sub connectors
- Nickel plated steel shell, 174-E Series NorComp connectors

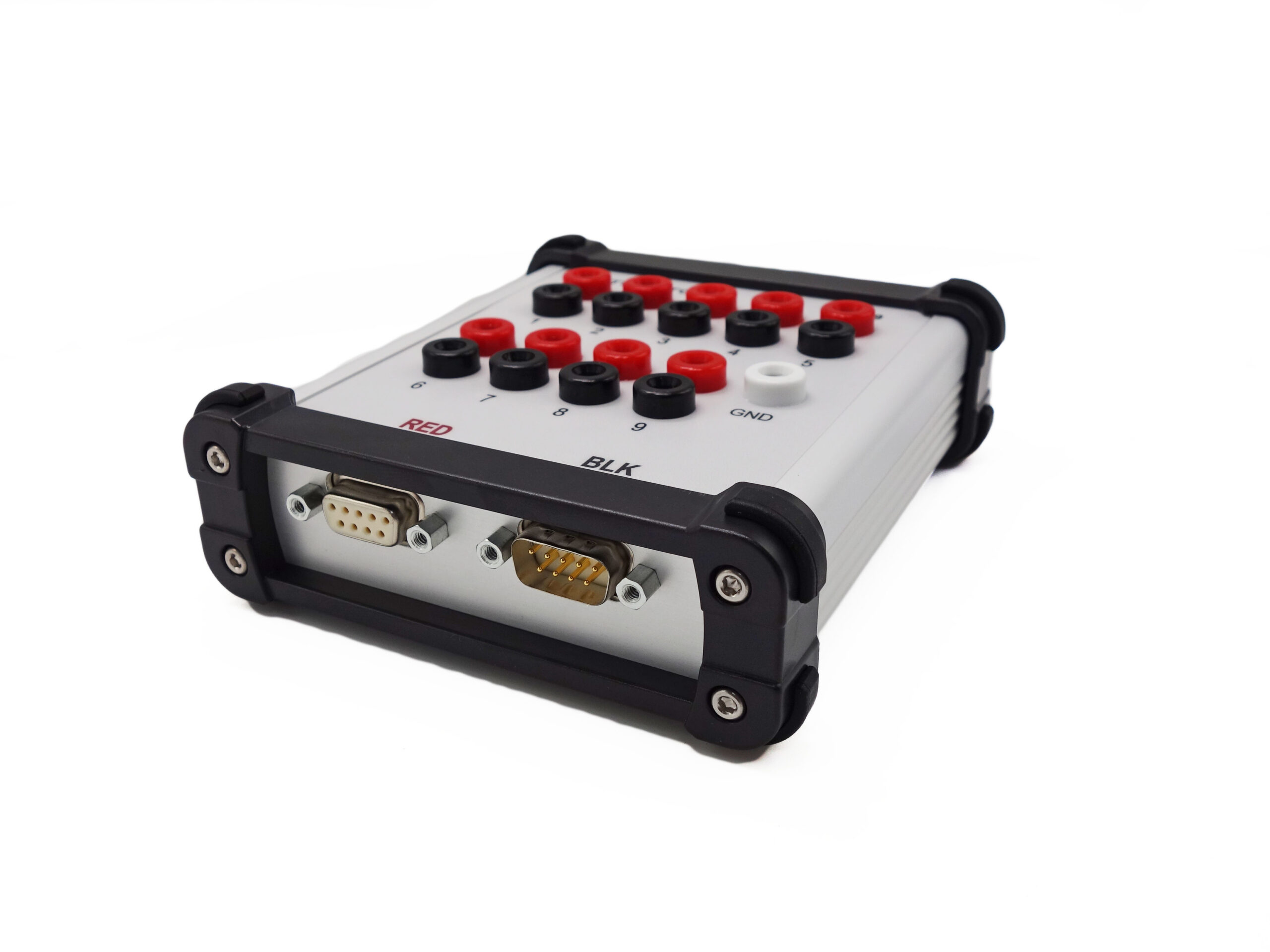

T1000-9
T1000-9 breakout box is our most compact breakout box, using dual 9 pin D-Sub connectors for signal capture or monitoring. Dual connectors provide a total of 18 test points plus a ground jack. All test points use standard size 4mm banana jacks. Ideal for continuity testing, isolation testing or signal capture and monitoring.
$399.00
Availability: 2 in stock (can be backordered)
Breakout Box T1000-15
| Resistance: | 0.120 Ω @ 20°C max. |
|---|---|
| Current Rating: | 5.0 Amps @ 20°C |
| Voltage Rating: | 33 Vrms / 70 Vdc for hand-held use, 500 Vrms for up to 1 min otherwise. |
| Connectors: | Standard Density 9-pin D-Sub, gold plated contacts. |
| Weight: | 0.4 kg |
| Enclosure: | Extruded Aluminum with impact resistant polycarbonate edge guards. |
