T1000-37

The T1000-37 is a popular, rugged signal breakout box built to streamline troubleshooting, testing, and signal capture. It features standard 37-pin D-Sub connectors for quick integration with your system or cable, enabling fast test setup and accurate measurements. Ideal for cable assembly validation or in-line signal monitoring, each test point is internally connected through a precision PCB to ensure low contact resistance and reliable signal access. High voltage Insulation Resistance testing is performed on all breakout boxes to ensure electrical integrity according to the specifications.



In-stock orders usually ship in 3-5 business days.
Backorders usually ship in 4-5 weeks.



ce-mark
Pb-Free

Datasheet

$799.00

Availability: 2 in stock (can be backordered)

Breakout Box T1000-15

  • Extruded aluminum enclosure with high-impact resistant design
  • Low contact resistance between test points and connectors
  • Silicone rubber corner guards and thermoplastic edge frames
  • Dedicated chassis ground test point (white banana jack)

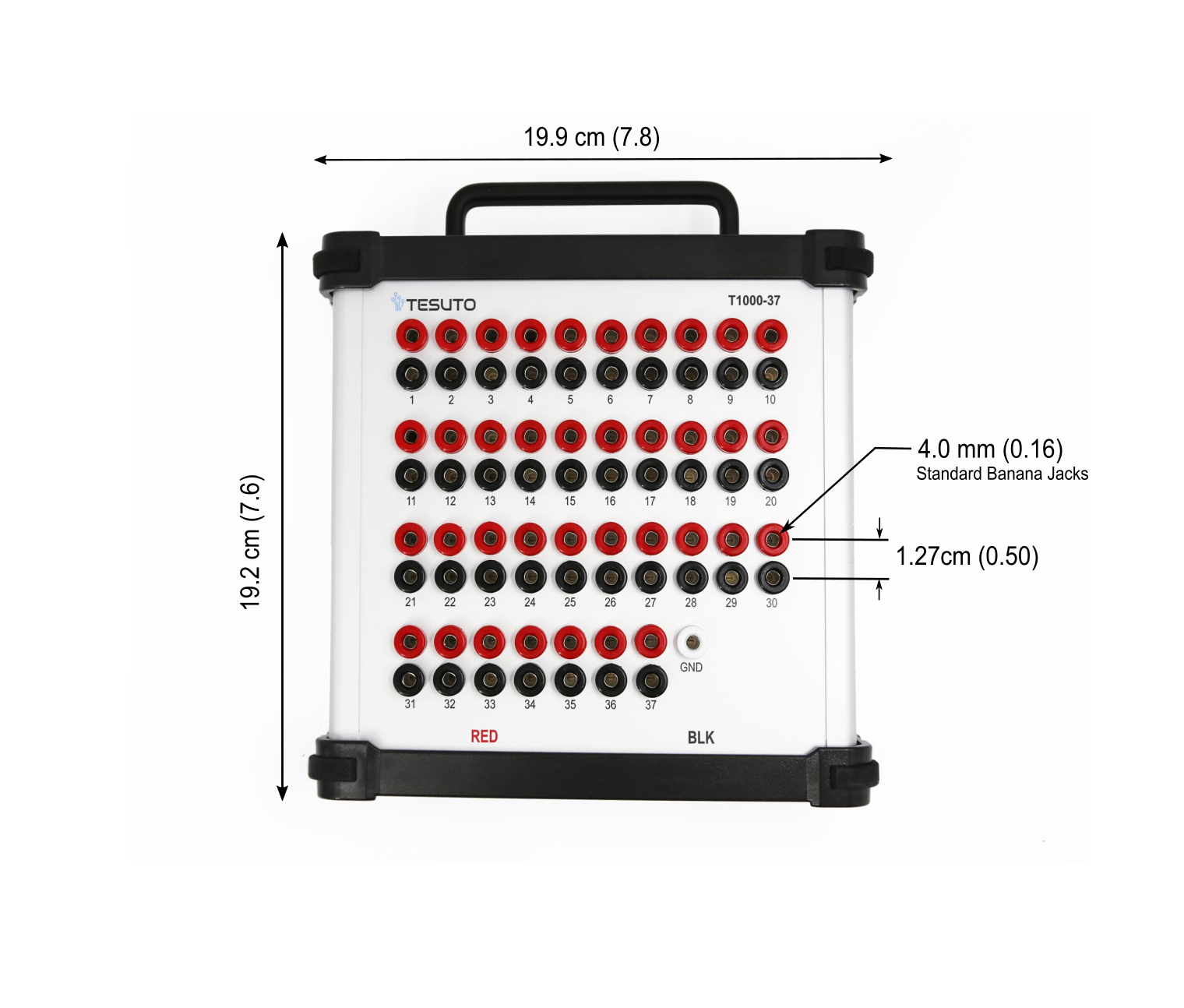

  • 74 insulated red and black banana jack test points
  • Tin plated formed brass banana jack contacts per QQ-B-626D
  • Compatible with standard 0.17 in. / 4 mm banana test plugs
  • High reliability Male/Female 37 pin D-Sub connectors
  • Nickel plated steel shell, 174-E Series NorComp connectors
  • Acceptance Test IR @ 500VDC, 200M Ohm min.

Looking for a custom breakout box?

Tesuto can design and build custom breakout box and connection boxes to your specifications. Contact Us by form or email us at sales@tesutosys.com and tell us what your project needs are. We typically reply within 1 business day.

Resistance:

0.120 Ω @ 20°C, max.

Current Rating:

5.0 Amps @ 20°C

Voltage Rating:

500VDC or 70VDC for hand-held use.

Connectors:

Standard Density 37-pin D-Sub, gold plated contacts.

Weight:

1.6 kg

Enclosure:

Extruded Aluminum with impact resistant polycarbonate edge guards.
